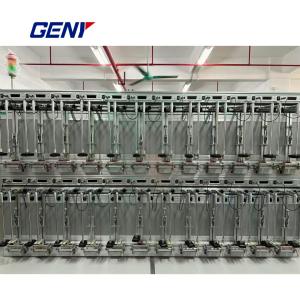

High Accuracy Energy Meter Test Bench with 3* (24V~288V) Test Voltage and 3* (1mA - 100A) Test Current Output for Meter Testing Equipment

Advanced Energy Meter Test Bench with Built-in ICT per Meter Position

Description

Our meter test equipment is a high-performance testing solution designed for precision testing of mechanical and electronic energy meters. It supports various testing modes, automation levels, and meter types, making it ideal for power utilities, meter manufacturers, and calibration labs.

Key Features

• Compatible Meter Types: Supports testing of mechanical meters, electromechanical meters, and fully electronic meters.

• Testing Modes Supported:

  • Active power testing

  • Reactive power testing

  • Cross-connected reactive power testing

• Meter Configurations:

  • 3P4W (Three Phase Four Wire)

  • 3P3W (Three Phase Three Wire)

  • 1P2W (Single Phase Two Wire)

• Simultaneous Testing: Test multiple meters with identical specifications but different meter constants.

• Automatic Rotor Positioning: High-efficiency disc mark alignment for mechanical meters.

• Startup and Creeping Tests: Ensures compliance with industry standards.

• Neutral Current Test (Optional): Advanced functionality for thorough testing.

• Built-in ICTs (Optional): For three-phase meters with I-P links (closed voltage-current loops).

• Safety Protection: Overload protection, short-circuit voltage protection, and open-current protection ensure operational safety.

• Simplified Operation: Integrated scanning head swing mechanism for easy control.

• Durable Build: Made from lightweight, corrosion-resistant aluminum alloy.

• User-Friendly Software: Compatible with Windows 2000/XP/7/8/10. Supports:

  • Error testing

  • Harmonic analysis

  • Demand test

  • Influence quantities test

  • And other modern meter testing functions
